PMD Testing Modules for MTS-6000a/8000

Fast, cost-effective and accurate polarization mode dispersion (PMD) testing for high speed networks characterization.

Category: OTDR & Fiber Characterization Tags: Messungen, Modul, MTS, OTDR, PMD, Viavi
  • Description
  • Product Enquiry

Description

PMD is one of the most critical parameters to consider when characterizing the fiber’s suitability for carrying high-data-rate transmission. While PMD limitations for 10 Gbps (Ethernet or [SONET/SDH]) do not present major obstacles for transmission deployments, potential issues with the further reduced limits associated with 40G and 100G require clear and correct consideration.

The Viavi PMD test solution provides fast, reliable and field-designed solution to help you characterize your fiber optic network with efficiency.

Highlights

  • Fixed analyzer method standardized by ITU-T, IEC, and TIA/EIA.
  • Field-portable test instrument without compromising performance and reliability.

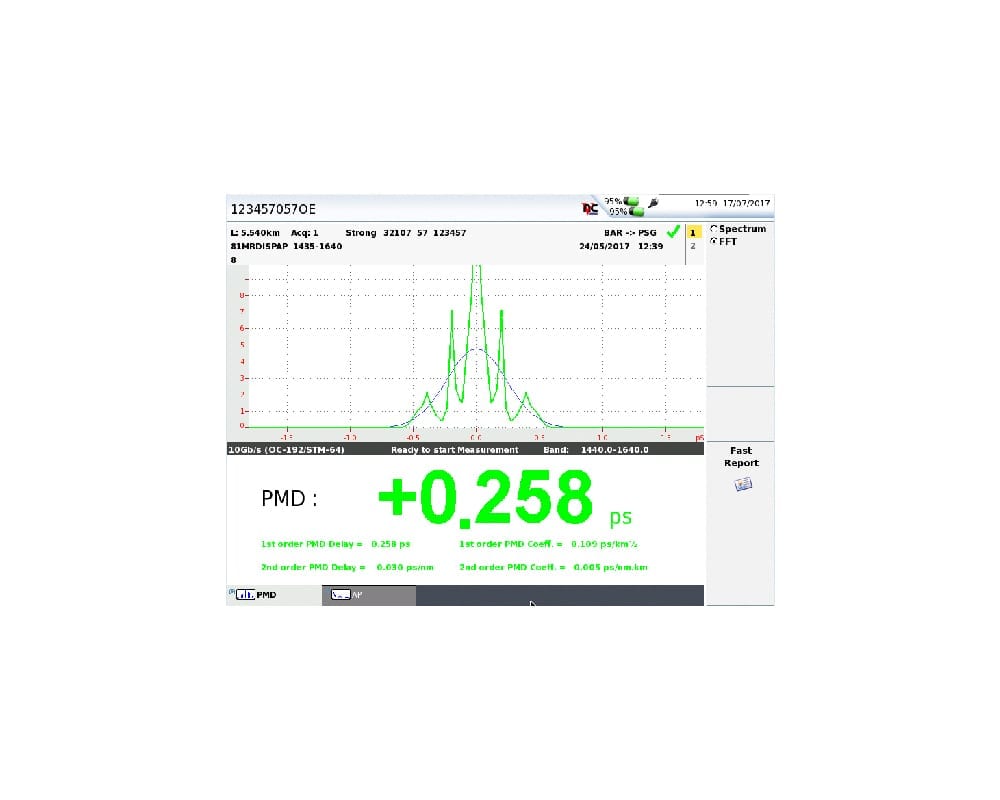

  • Measures PMD delay, PMD coefficient, and calculate second-order PMD.
  • Work in conjunction with wide range of handheld or modular light sources.

Applications

  • Qualify DWDM/CDWM high-speed networks: 10G to 40G/100G.
  • Modern and ultra-low PMD optical fiber testing before or after installation.
  • Characterize buried, aerial, submarine cables, amplified and non-amplified links, short- and ultra-long haul.

Key Features

  • Perform measurements in just 6 seconds.
  • Dynamic range up to 58dB independent of PMD value.
  • PMD range of 0 to 60 ps.
  • Combines Chromatic Dispersion and Attenuation profile in a single slot module.

Product Enquiry PMD Testing Modules for MTS-6000a/8000

    Subject

    ONLINESHOP


    Flyer Anedis PDF

    Related products

    • Quad Dekoder mit RF Ausgang

      Read more Show Details
    • Ausgangsmodul – ASI

      Read more Show Details
    • MPO-Mehrfaser-Schaltmodul

      Multi-Fiber MPO Switch Module for MTS-4000

      Read more Show Details
    • Eingangsmodul – DVB-S/S2X

      Read more Show Details

    Contact

    ANEDiS Management GmbH
    Phone.: +49 30 710963-0
    E-Mail: info@anedis.de
    Alexander-Meißner-Straße 24 – 28
    12526 Berlin
    Germany

    Aktuelle Beiträge

    • Relocation of operational business activities within the Netceed Group14. November 2024 - 8:24
    • Start of a successful collaboration between SachsenGigabit and ANEDiS26. February 2024 - 10:14
    • ANEDiS auf den fiberdaysVisit us at the fiberdays!29. January 2024 - 10:35

    Partnerschaft / Mitglied

    © 2024 ANEDiS Management GmbH
    • Facebook
    • LinkedIn
    • Mail
    • Impressum & AGB
    • Datenschutzerklärung

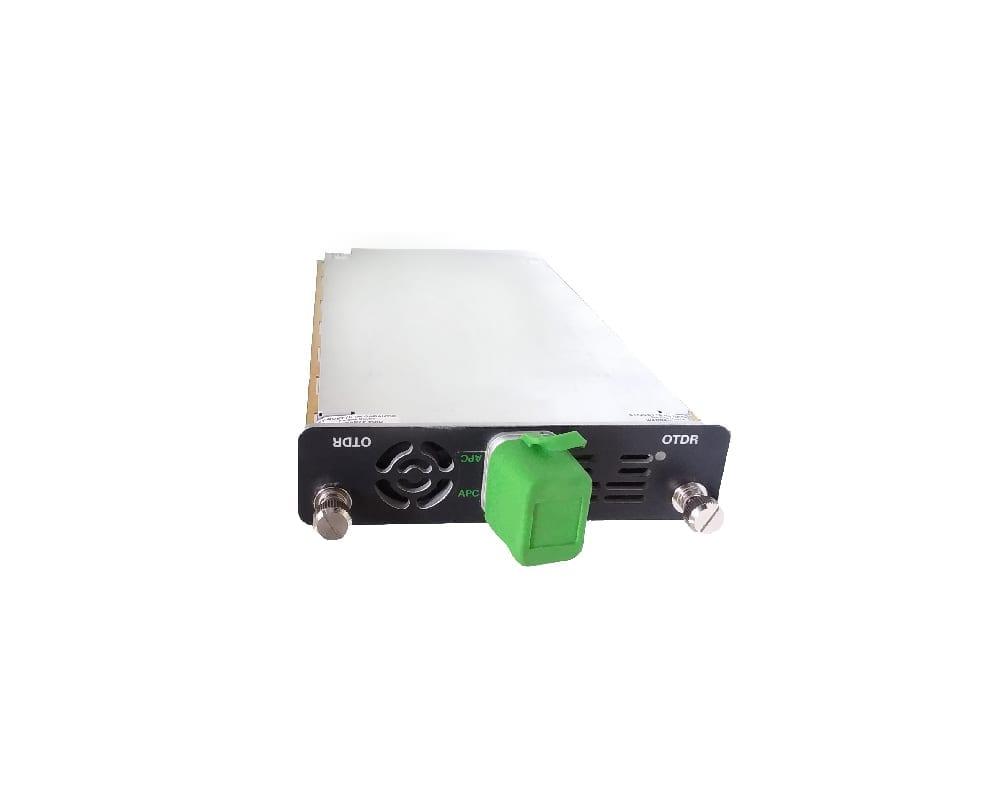

    FiberComplete Integrated Loss, ORL and OTDR Modules – 8100-Series for MT...Optical Dispersion Measurement Modules for MTS-6000a/-8000
