XGS-PON & G.fast The gamechanger for your digital infrastructure
About XGS-PON, G.fast and how to achieve the best transmission standard of the future by combining the world’s best fibre-optic copper technologies from our partners.

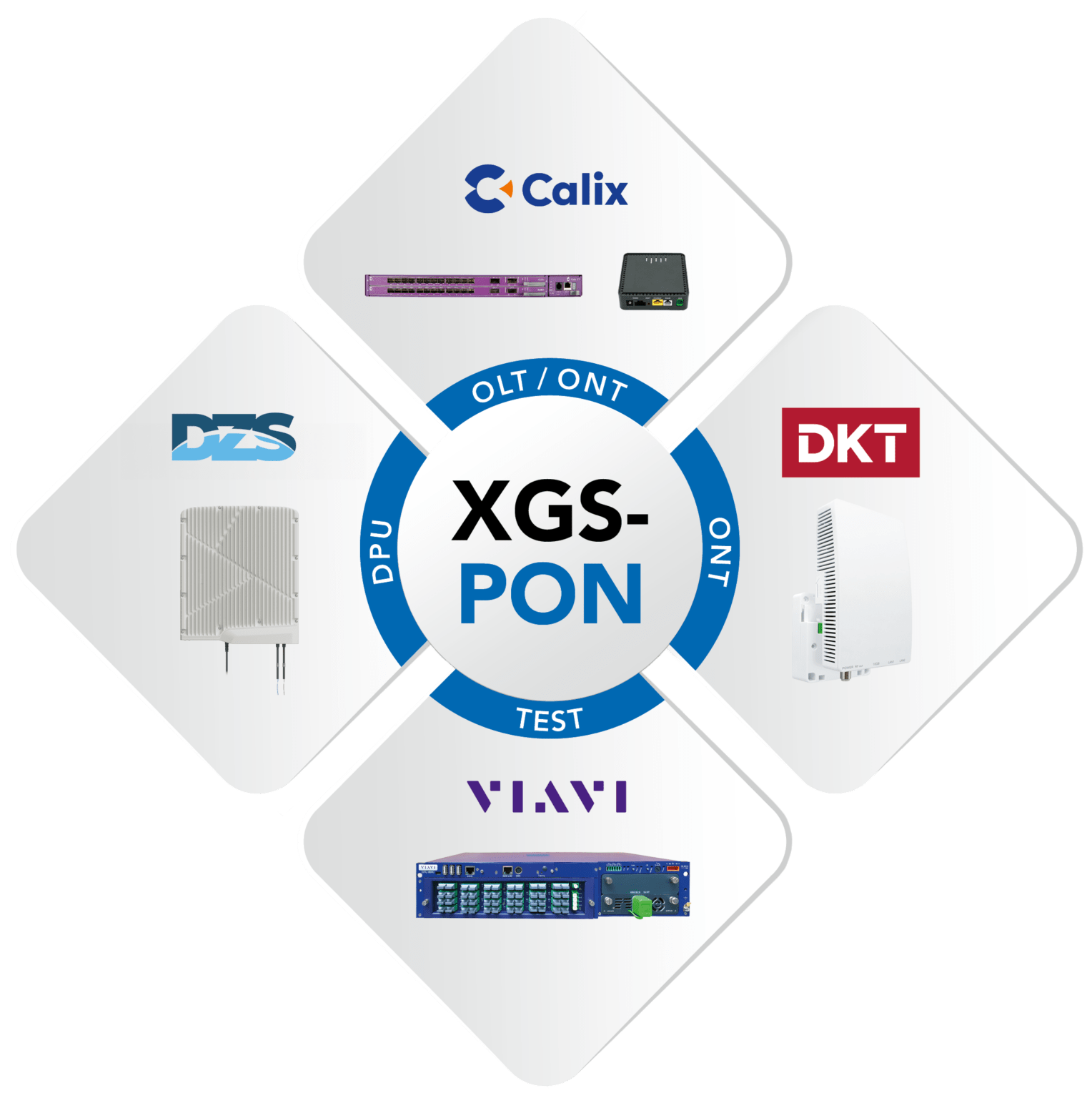

FTTH with XGS-PON
Follow a manual added link
Calix
OLT and ONT solutions for 10 Gigabit-capable FTTH access network and XGS-based services.
Follow a manual added link
Casa Systems
G.fast DPU solutions for fibre connections over existing copper lines.
Follow a manual added link
DKT Comega
ONT solutions for fibre optic termination units (1Gbps, 10Gbps, Active Ethernet / GPON / XGS-PON).
Follow a manual added link
VIAVI Solutions
Commissioning & monitoring solutions for optical networks (core, metro, access and FTTH networks).
What is XGS-PON?
XGS-PON is a standard that supports symmetrical data transmission at 10 Gbit/s for Passive Optical Networks (PON). XGS-PON is an abbreviation and stands for 10 Gigabit Symmetric PON (“X” in XGS stands for the number “10” and the letter “S” for “symmetric”). The earlier version XG-PON was a non-symmetrical transmission and limited to 2.5 Gbit/s upstream.
|
SPECIFICATIONS |
GPON |
XG-PON (10G GPON) |
XGS-PON (10G GPON) |
|---|---|---|---|
|
Wavelength |
Downstream: 1480 – 1500 nm Upstream: 1290 – 1330 nm |
Downstream: 1575 – 1580 nm Upstream: 1260 – 1280 nm |
Downstream: 1575 – 1580 nm Upstream: 1260 – 1280 nm |
|
Mitten-wellenlänge |
Downstream: 1490 nm Upstream: 1310 nm |
Downstream: 1577 nm Upstream: 1270 nm |
Downstream: 1577 nm Upstream: 1270 nm |
|
Max. Data rate |
Downstream: 2.488 Gbit/s Upstream: 1.244 Gbit/s |
Downstream: 9.953 Gbit/s Upstream: 2.488 Gbit/s |
Downstream: 9.953 Gbit/s Upstream: 9.953 Gbit/s |
|
Max. physical transmission distance |
60 km |
100 km |
100 km |
|
Max. Pitch ratio |
1:128 |
1:256 |
1:256 |

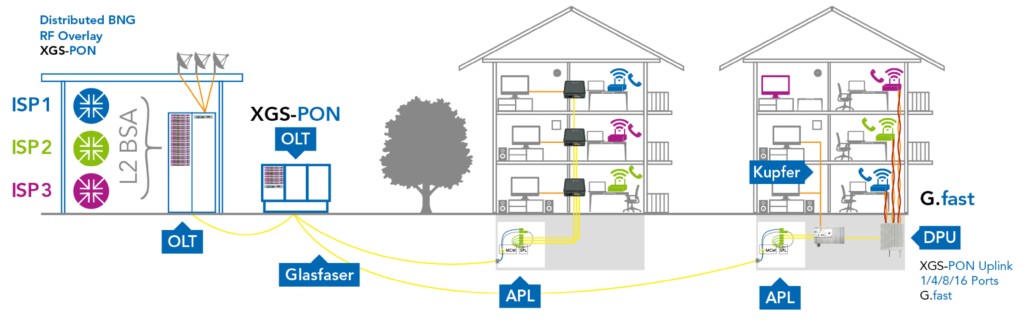

Multi-gigabit connections for end customers, compliant with the TKG amendment

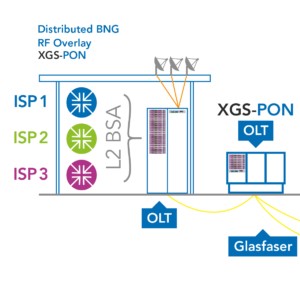

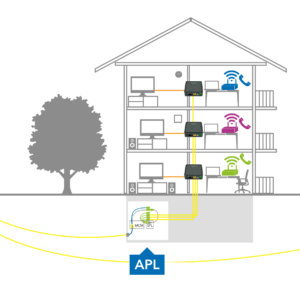

FTTH with XGS-PON

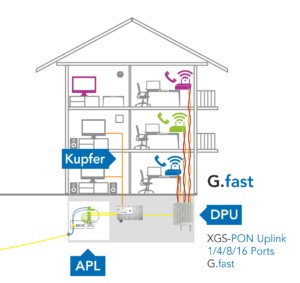

FTTB with G.fast
G.fast over Koax
The Access Software Platform
- State-of-the-art software development (Netconf/YANG)
- Modular – designed for rapid customisation
- Agile development – easy upgrading
- Enables future architectures SDN/NFV
- One API, one method of procedure, one integration, one CLI
- IPFIX support for telemetry functions
- Distributed BNG functionality (E9 platform)
- Compatible with the E3 | E5 | E7 | E9 series
- Pay-as-you-succeed model
E9-2 ASM3001 – BNG & LI Router
- For PoP and data centres
- Building a next generation aggregation layer
- Traditional Layer 2 network
- Simplified Layer 3 access network
- L2 and L3 VPN, MPLS, Subscriber Management, Lawful Intercept
- Uplink options N*100G, N*40G, N*10G

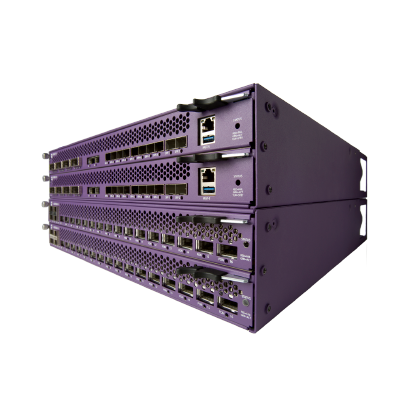

E9-2 - Integrated OLT system
- The integrated OLT system for PoP and data centres
- An OLT system consists of at least two chassis
- One or two CLX3001 control cards in one chassis
- Expandable by up to eight access shelves (chassis 2 to 9) with two line cards each
- Maximum of 16 linecards
- Mix / Match – GPON / XGSPON / NG-PON2
- Modular architecture for medium to high density fibre solutions
- Integrated transport and subscriber interfaces
- NG1601 linecard for XGS-PON or NG-PON2 with 16 PON-XFP slots

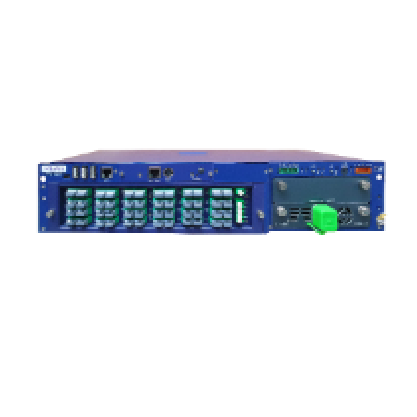

E7 flexible in- / outdoor OLT
- Temperature-hardened modular system for PoP and multifunctional enclosures
- Two cards per chassis
- AXOS GPON/XGS-PON/NG-PON2 and carrier-class Active Ethernet Layer 2 services
- Modular architecture for low to medium density fibre solutions
- Integrated transport and subscriber interfaces
- Non-blocking uplinks
- XG801 linecard for GPON or XGS-PON with 8 SFP+ slots plus 4 SFP+ slots, 10/2.5/1 GE portsUNI or NNI and 2 QSFP28 slots
XGS ONT GigaPoint GP1100x & GP1101x
- 1x 10/10 G XGS-PON WAN interface, SC/APC
- 1x POTS (ANSI or ETSI) interface for SIP
- Ethernet OAM (CCM, loopback, link trace, ping)
- Optional: UPS support – 2-pin and 8-pin DC connection
- Optional: FTU integrated
- GP1100x: 1x 2.5 GE / 1 GE LAN interface, RJ-45
- GP1101x: 1x 10 GE / 2.5 GE / 1 GE LAN interface, RJ-45
Calix
10 Gigabit-capable FTTH access network
The ability to deploy a 10 Gigabit-capable FTTH access network enables broadband service providers (BSPs) to leapfrog their competition by bringing advanced broadband offerings to market that enable them to rapidly deploy next-generation XGS-based services, develop new incremental revenue streams and acquire subscribers in an accelerated manner.
By investing in the Calix Intelligent Access EDGE solution, which is based on the software-defined Network Innovation Platform, BSPs can reap a number of benefits, including a reduction in total cost of ownership of up to 40 per cent and a dramatic reduction in the time it takes to deploy new services from weeks to days.
AXOS intelligent access edge systems enable you to deliver services to your subscribers from the data centre to the most remote locations on your network with consistent operational procedures and rapid BSS/OSS integration, regardless of the system, location on the network or technology used.

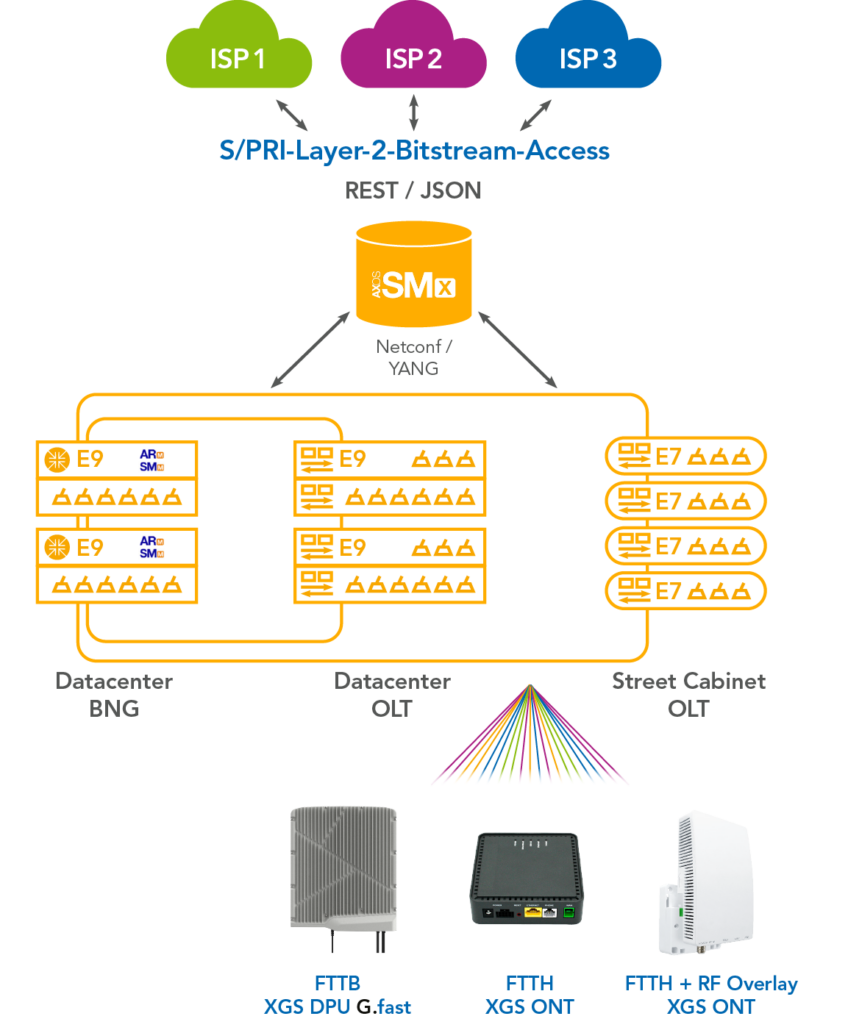

Open multi-vendor total solution for FTTH and FTTB
Casa Systems
The missing link
Fibre-to-the-home (FTTH) installations have generated great excitement among broadband users as they promise amazing, consistent high-speed services with low latency. However, many FTTH installations cannot reach or connect all customers in a given area. There are various reasons for this, such as expensive last-hop installation costs, building access difficulties, historical/architectural constraints or complex multi-dwelling unit (MDU) arrangements.
In response to these challenges, operators worldwide are adopting a fibre expansion strategy to deliver ultra-fast broadband. This uses Gfast technology to bring fibre-like speeds to homes over existing last-hop copper infrastructure – a cost-effective alternative to a full fibre roll-out.
This efficient and effective fibre expansion strategy consists of a remotely powered Distribution Point Unit (DPU) connected to the existing copper line and powered by an in-house Network Termination Device (NTD).

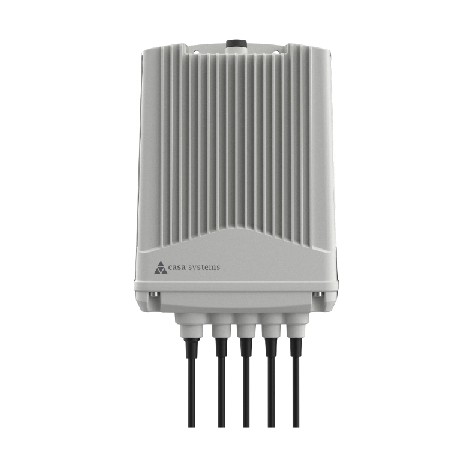

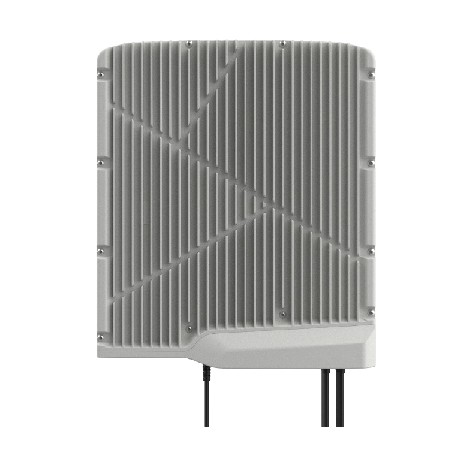

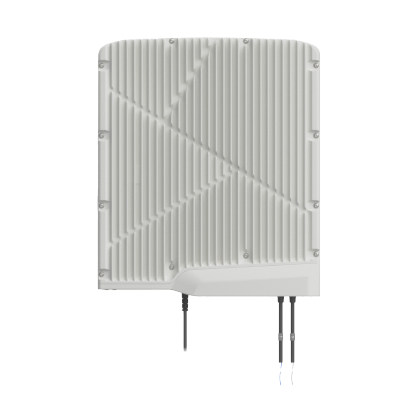

FTTB G.fast Distribution Point Unit (DPU)
16 G.fast Ports
8 G.fast Ports
4 G.fast Ports
DPU Hardware
AxyomTM
Element Management System
DKT Comega
The ONT Series 79xxx is also referred to as the “2-box solution” in the industry, where there is a clear distinction between FTU/ONT and router/home gateway.
This solution ensures simple operation of the XGS-PON network and offers a high level of investment security for years to come thanks to the future-proof XGS-PON standard.
Product overview: 797xx series
|
XGS-PON |
XGS-PON |
XGS-PON with CATV |
XGS-PON with CATV | |
|---|---|---|---|---|
|
Parameter |
FTTH-XGS-1F-3P |
FTTH-XGS-1F-2P |
FTTH- XGS-1F-3P-CATV |
FTTH- XGS-1F-2P-CATV |
|
XGS-PON WAN |
✓ |
✓ |
✓ |
✓ |
|
1 Gbps LAN |
2 |
1 |
2 |
1 |
|
10 Gbps LAN |
1 |
1 |
1 |
1 |
|
CATV |
– |
– |
✓ |
✓ |
|
Switch engine * |
✓ |
✓ |
✓ |
✓ |
|
WDM filter |
– |
– |
✓ |
✓ |
|
Fiber Connector |
SC/APC |
SC/APC |
SC/APC |
SC/APC |
|
SFP WAN |
✓ |
– |
✓ |
– |
|
BOSA WAN |
– |
✓ |
– |
✓ |
|
Compatible with DKT clickable FTUs ** |
✓ |
✓ |
✓ |
✓ |
|
Item No. |
79757 |
79857 |
79759 |
79859 |
* Support for VLANs, Q-in-Q, QoS, IGMP, Jumbo Frames and traffic shaping and manipulation
** All passive FTUs has to be ordered seperately.
The most flexible FTUs in the industry
The standard Ethernet interfaces with 10 / 5 / 2.5G and Gigabit LAN offer with the 2-box solution a flexible and standardised way to easily adapt the router/home gateway to the much faster technology changes (in the field of WLAN and IoT), as well as to the needs of the end customers.
The FTU layout is based on a standard Euro socket form factor so that the customer perceives this unit as a socket and not as “another device in my house”. The active part can be clicked directly onto the FTU.

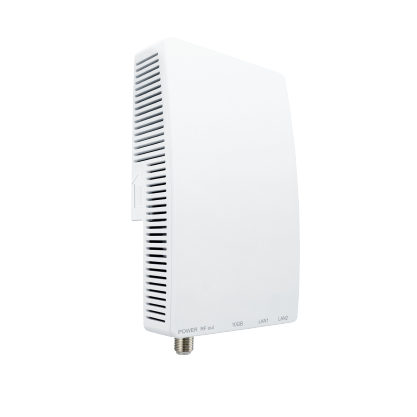

Active XGS-PON ONT
The active XGS-PON ONT unit features 1 x SC/APC connector for XGS-PON (WDM integrated) and the optional RF overlay. The XGS-PON ONT solution is based on an open OMCI to ensure interoperability with a wide range of OLTs. The optional RF overlay port is switchable via the OMCI (depending on the OLT). The CALIX AXOS based OLTs support this feature.
The XGS-PON ONT family has low power consumption and supports the recommendation of the “Code of Conduct on Energy Consumption of Broadband Equipment”.
VIAVI Solutions
ONMSi – optical network monitoring system
ONMSi optical network testing and monitoring system for core, metro, access and FTTH networks.
The ONMSi optical network monitoring system increases labour productivity and simplifies fibre network management with fewer technicians through remote testing and accurate documentation of installed fibre cables. The system accurately detects and locates fibre quality degradation and informs the network operator and manager based on detailed fault location information. Measurement plans allow network operators to evaluate the long-term performance of the fibre and implement efficient asset management on this basis.
