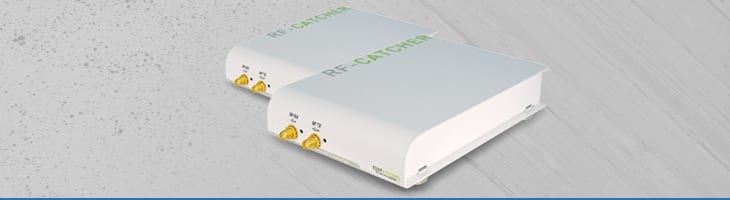

ENENSYS RF-Catcher

The most compact RF Capture & Playback device. Covering a frequency range from 70 MHz up to 6 GHz, RF-Catcher can Record & Play real-time RF bandwidth of up to 55 MHz.

your technicians and engineers can bring it everywhere in their hand bag



Benefits

  • Compact, easy & simple usage: no need for RF experts to capture field RF signals (ex: DAB/FM, TV broadcast, Satellite broadcast, Wi-Fi,…), your sales force can do it for you anywhere in the world
  • RF sources stored on a PC: easy to duplicate/transfer between headquarter and regional sites
  • Non proprietary IQ files; IQ file format converter available

Key Features

  • Compact and light handset (< 1 kg)
  • Frequency range 70 MHz to 6 GHz
  • RF input Dynamic range -110 to 2.5 dBm
  • Recording bandwidth 200 kHz to 56 MHz
  • Memory capability up to 170 min at 512 GB @ 12 Msps
  • USB 3 interface
  • 12 hours battery life

Applications

  • Chipset, STB/TV field test debugging (a great tool to support your pre-sales team)
  • Handy demonstration setup: bring real RF sources into your laptop
  • Radio/TV Broadcast/Telecom RF troubleshooting
  • Test automation (CLI): plan & trigger capture/playback tasks
  • Telecommunications Regulation Agencies validation tool
